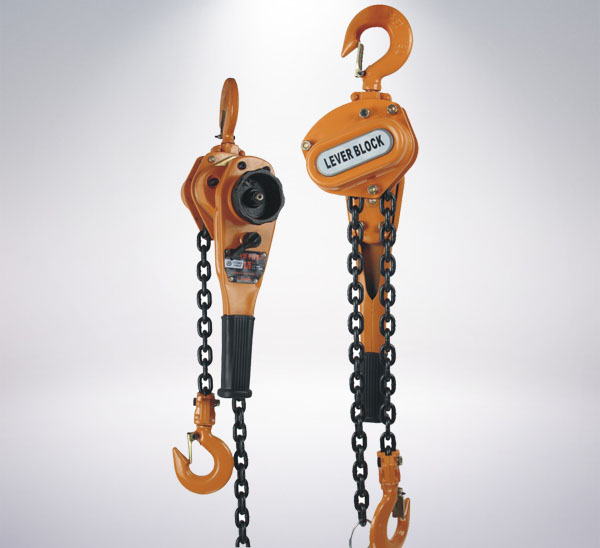

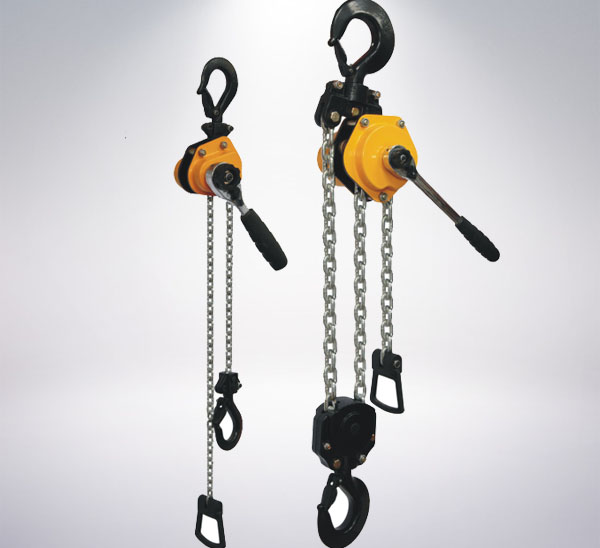

   Lever hoist is pulled through the human hand lever principle with the load to obtain a straight line traction, the role of rotation in the load of a clamp body, drive load operation. It has the advantages of compact structure, light weight, small size, easy to carry, labor-saving, safe and reliable, long service life, small hand-pulling force and small wear on the steel wire rope. Lever hoist is mainly used in shipbuilding, electricity, transportation, mining, post and telecommunications and other industries. Saying a small hand, the ability to let you save time and effort, then what are the requirements when using the lever hoist What are the maintenance tips?

  Lever hoist use requirements:

  1. Forbid overload use.

  2. It is strictly prohibited to use other than human power operation.

  3. Before use, make sure the keys are intact, the transmission part and lifting chain lubricate well, and the idling condition is normal.

  4. Check before lifting the hook is hooked. It is forbidden to wrongly hang the heavy object on the hook tip. Lifting chain may not have the wrong link, to ensure safety.

  5. Operation, such as hand force is greater than the normal board force, should immediately stop using. Check: A. whether heavy objects implicated in other objects. B. Hoist mechanical damage. C. Does the weight exceed the rated load of the hoist?

  Lever hoist care tips:

  1. After use should be cleaned gourd, and coated with anti-rust grease, stored in a dry place.

  2. Maintenance and repair should be familiar with the gourd body to carry out, to prevent disassembly of those who do not understand the mechanical principles.

  3. Gear Installation Antu shown, should use two pieces of paper gear.

  4. Handwheel (20) In the case of pressing the ratchet (33) of the friction plate (13), the distance between the hand wheel (20) and both ends of the hexagonal slotted nut should be controlled within 0.2-0.5mm.

  5. Lever hoist after cleaning and maintenance, should be no-load test to confirm the normal work, reliable braking, to deliver.

  Brake friction surface must be kept clean, brake parts should be checked regularly to prevent failure caused by braking accident.

  Yu-lifting production of lever hoist quality assurance, FKS aluminum alloy lever hoist is also a major feature Yu car lifting, welcome to consult purchase, we are happy to help you.
