PDQ Single Plate Lifting Clamp

  • Brand:yudiao
  • Original:Hebei China
  • Material:Alloy steel
  • Surface Treatment:Powder Coating
  • MOQ:100
  • Package:Carton/Wooden case
  • Port:Tianjin/Shanghai
  • Payment:T/T L/C
  • Shippment:30-45days
  • Delivery:by sea
  • Price:1-99(USD)

View details

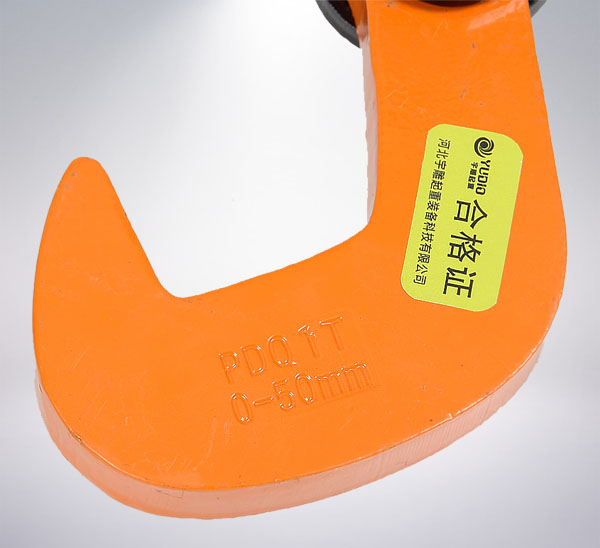

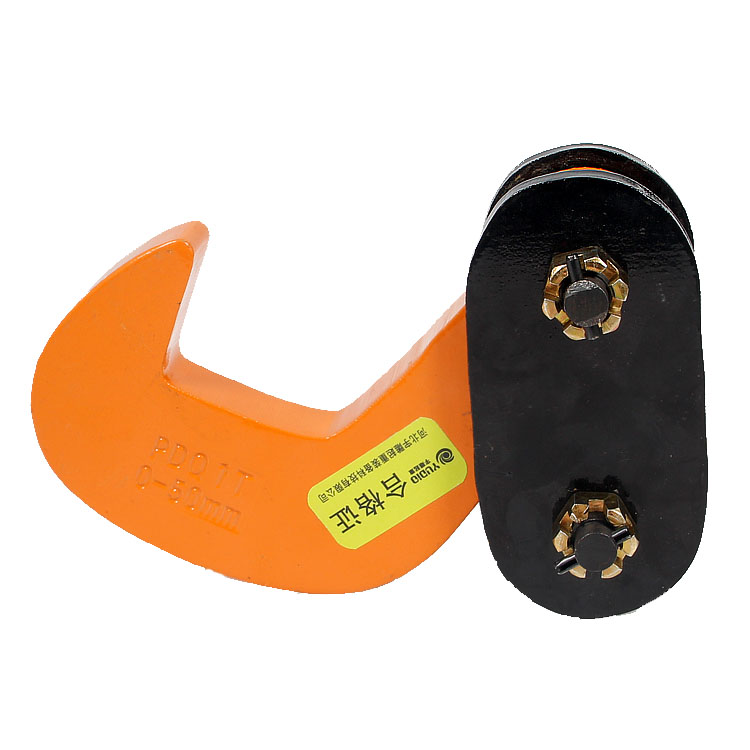

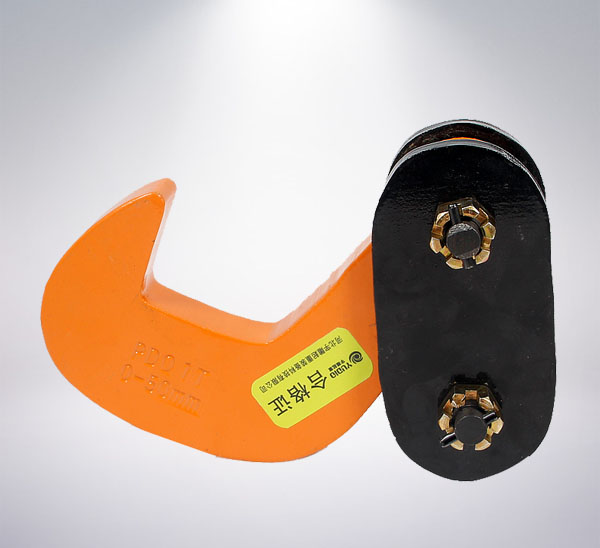

  The name of product: PDQ single plate lifting clamp

  The type of product: Plate clamp

  Product description:PDQ type single plate lifting clamp is a tool for horizontal lifting of steel plate supplied by Yudiao company. The PDQ type single plate lifting clamp needs 4 supports in the hoisting operation, and must be matched with the balance beam.All products of Yudiao are guaranteed by People's Insurance Company of China PICC, please rest assured to buy.

  24 hours free hotline: 86 18903121217

  The specification of product:

  1. Application: suitable for horizontal lifting of steel plate.

  2. Made of Shougang low carbon alloy steel.

  3. Load range: 0-8 tons.

  4. With two experiments as the rated load, the lifting operation, four supporting use, must be used with the balance beam, automatic decoupling.

  5. During the lifting process, the suspended object can not be collided, and overloading is strictly prohibited.

  6. Test load = rated load x2.

  7. Rated load means the maximum weight that the lifting clamps are used in pairs and the lifting angle is 60 degrees.

  8. Strong and durable, easy to operate.

  Our company can also produce a variety of non-standard products with samples and design drawings of customers, to meet the different needs of customers. We adhere to the principle that science and technology are the primary productive forces and strictly follow the quality standards, from the purchase of raw materials to the entire process of transport of goods are strictly controlled. Our goal is to achieve the product qualification rate of 100%, ensure high quality of products.
